Overview Zahner CIMPS

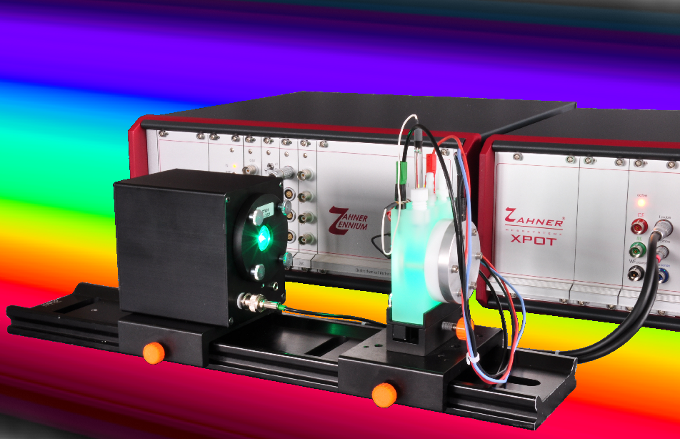

Zahner CIMPS

Universal Photo-Electrochemical

[row][column size=”1/3″]

Workstation

  •      core system
  •      Zennium/  X / Pro /  E4
  •      XPot/PP211
  •      optical bench
  •      LDA
  •      sensor & cell holder
  •      options

IMPS, IMVS, max. power, fill factor, …

[/column] [column size=”2/3″]cimps_rainbow[/column] [/row]

The CIMPS principle

Controlled lntensity Modulated Photocurrent Spectroscopy

zahner_001

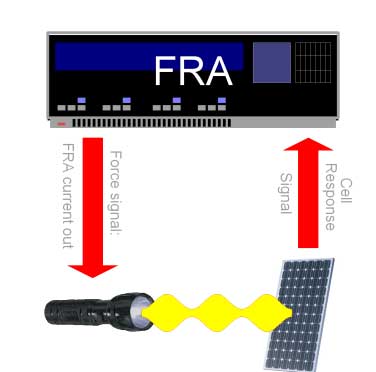

IMPS
LED current = intensity
heating, ageing ?

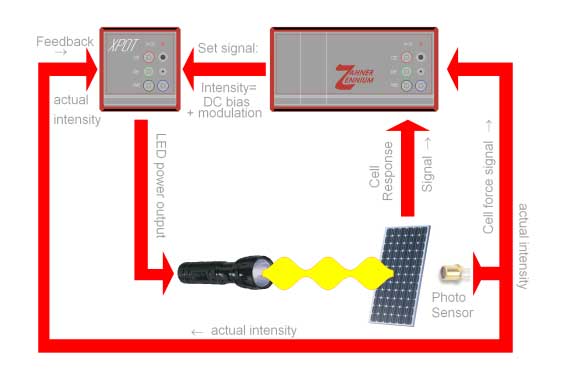

zahner_002

CIMPS
Intensity measured back,
controlled in feedback loop.



zahner_003.

LED Light Sources

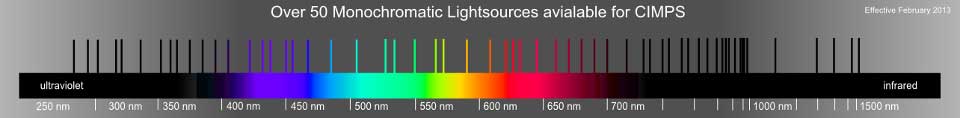

zahner_004[row][column size=”1/3″]

  • 365 to 1550 nm
  • up to 1000 W/m²
  • individually calibrated
  • automatically detected

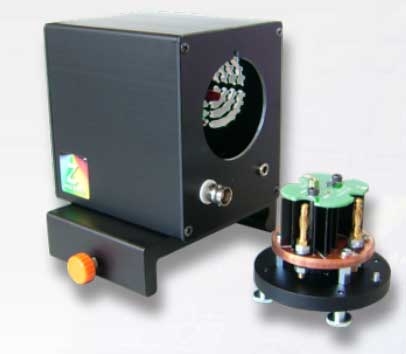

[/column] [column size=”1/3″]zahner_005[/column] [column size=”1/3″]zahner_006[/column] [/row]

Photo-ElectroChemical Cell PECC

[row][column size=”1/3″]
  •  BK7 or quartz window
  • Ag/AgCl-reference
  • Pt counter electrode
  • PECC-1 : PTFE
    solid samples
  •  PECC-2 : PCTFE
    solid samples
    translucent samples

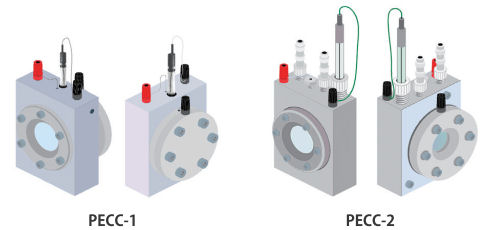

[/column] [column size=”2/3″]PECC[/column][/row]

CIMPS application (I)

[row][column size=”1/2″]dssc_lighttransient

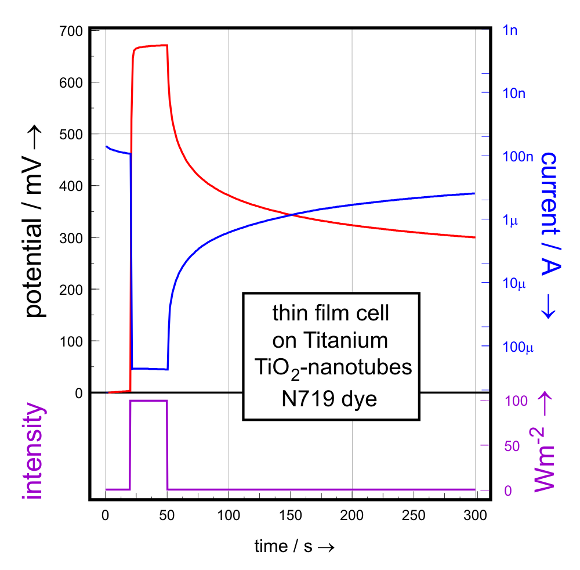

DSSC light transient

[/column] [column size=”1/2″]

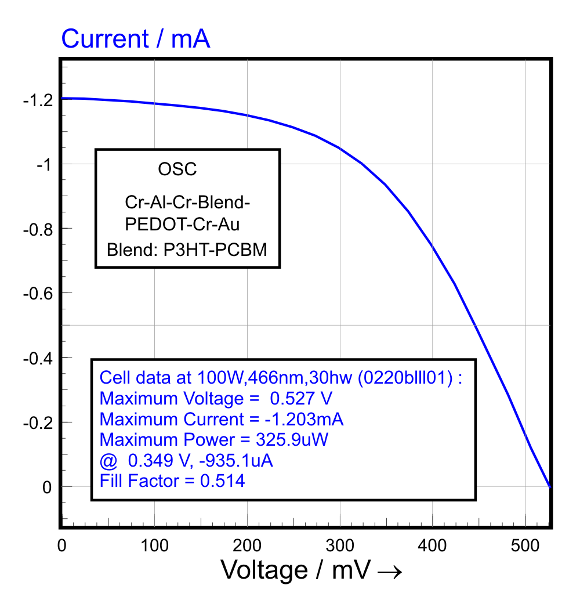

sc_fillfactor_maxpower

OSC fill factor, IPCE,
Maximum Power

[/column] [/row]

CIMPS application (II)

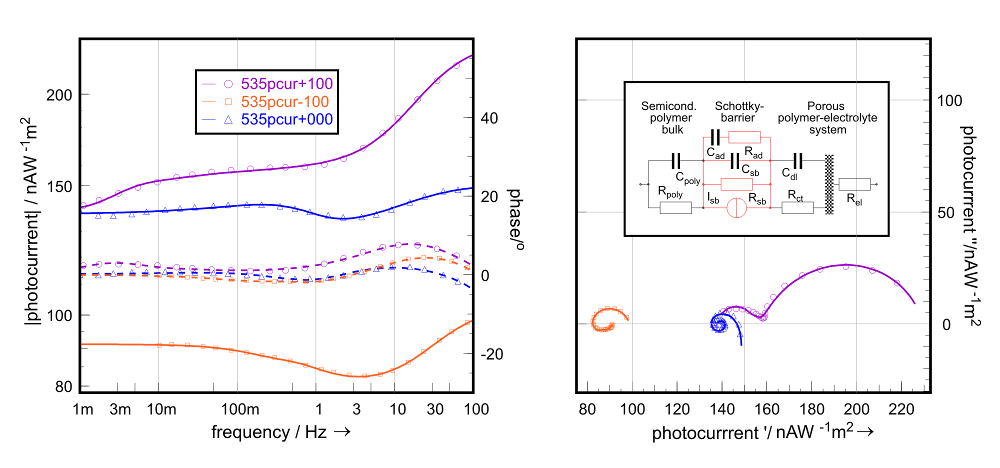

cimps_imps_imvs_2

Hybrid solar cell: photocurrent spectra, simulation and fit

CIMPS-abs

[row][column size=”1/3″]

CIMPS-abs

  •     UV/VIS/NIR-spectrometer
  •     high power LED or
  •     tungsten lamp
  •     2 PECC-2 with slider

CIMPS-abs2

  •     deuterium tungsten lamp
  •     backthinned CCD spectrometer
  •     2 PECC-2 quartz window with slider
[/column] [column size=”2/3″]

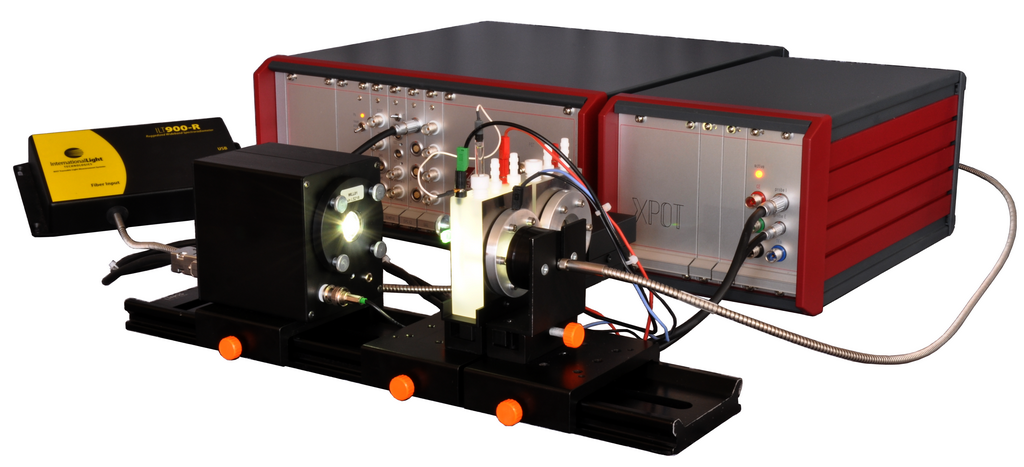

CIMPS-abs

optical absorption/transmission measurements

[/column] [/row]

CIMPS-abs application

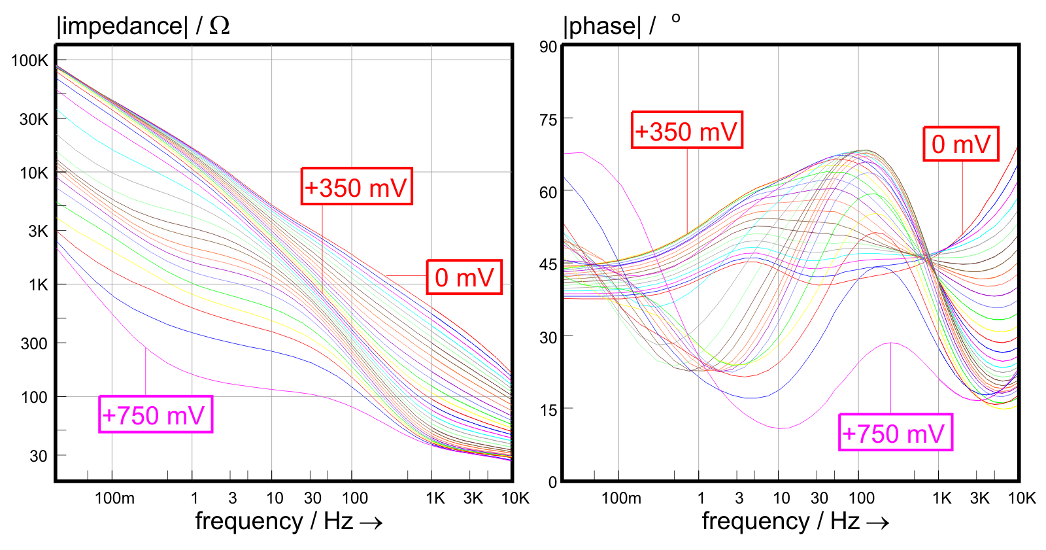

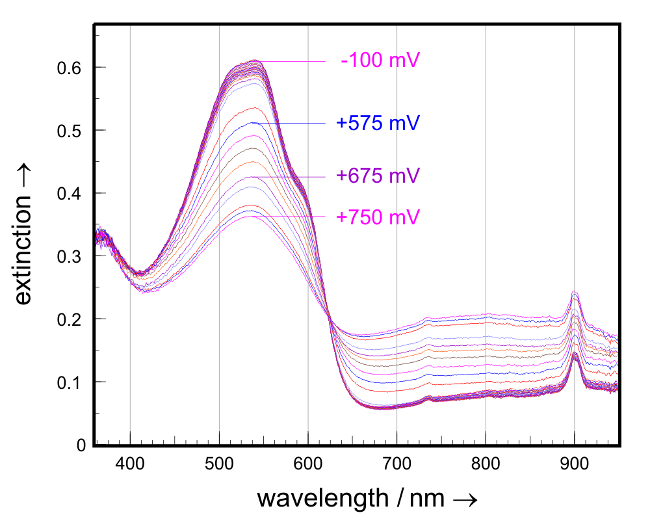

abs_eis_spectraabs_extinction_spectraP3HT-PEDOT:PSS film synchronous impedance/phase spectra and film extinction spectra vs. cell voltage

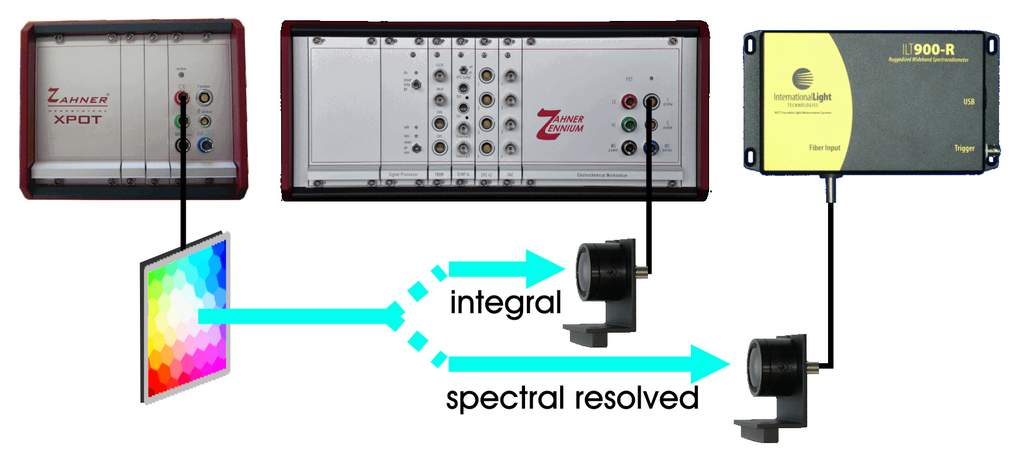

CIMPS-emit

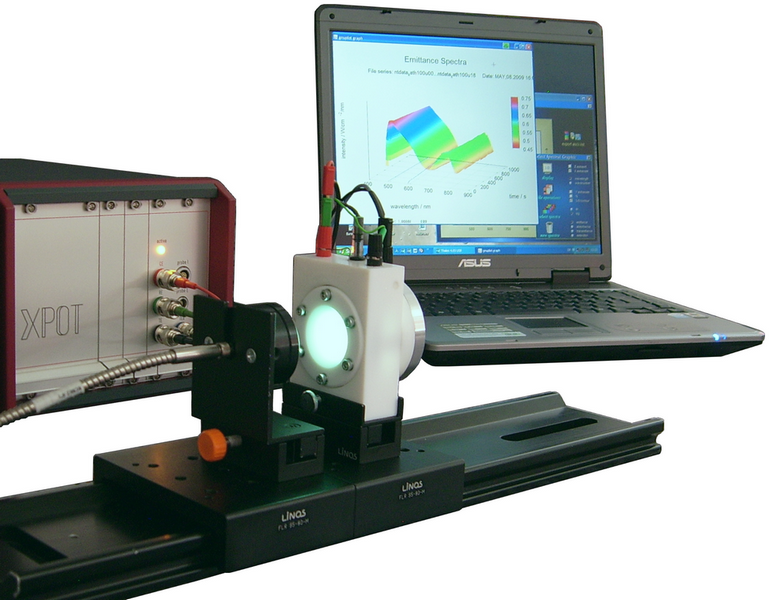

[row][column size=”1/2″]emitsystem2[/column] [column size=”1/2″]

emitschema

  • UV/VIS/NIR-spectrometer
  • calibrated photodiode
[/column] [/row]

Light emission spectra: electroluminiscence, OLEDs, …

CIMPS-pcs

Wavelength resolved photocurrent spectroscopy IPCE

[row][column size=”1/3″]
  • tunable light source TLS02
  • 430 – 720 nm

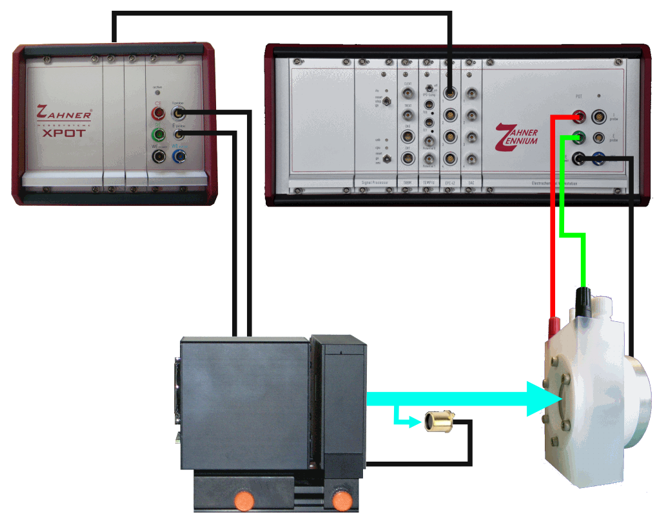

pcsschema

[/column] [column size=”2/3″]

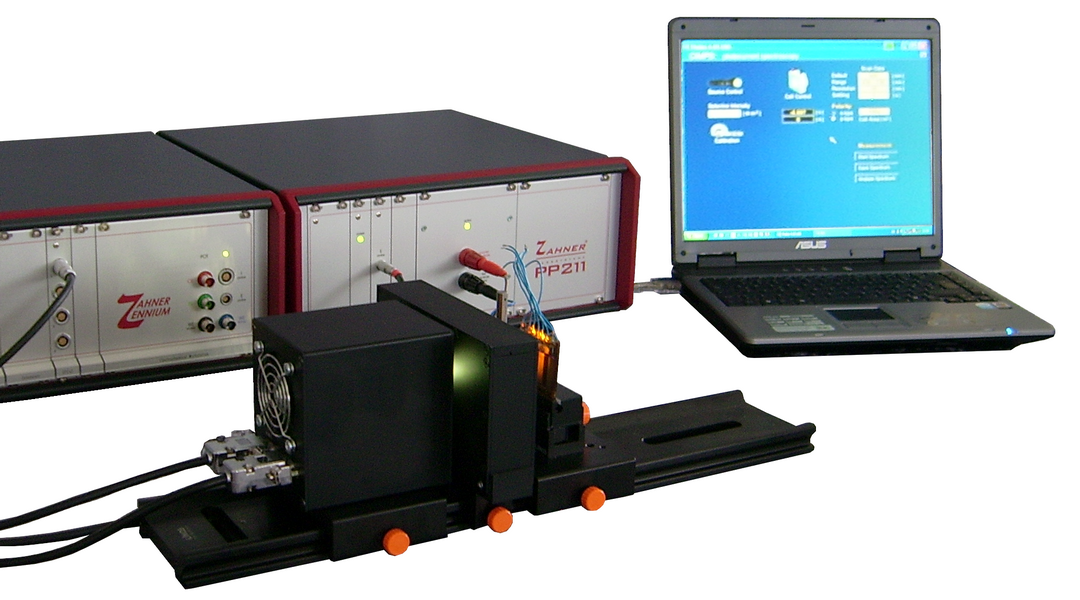

pcssystem

[/column] [/row]

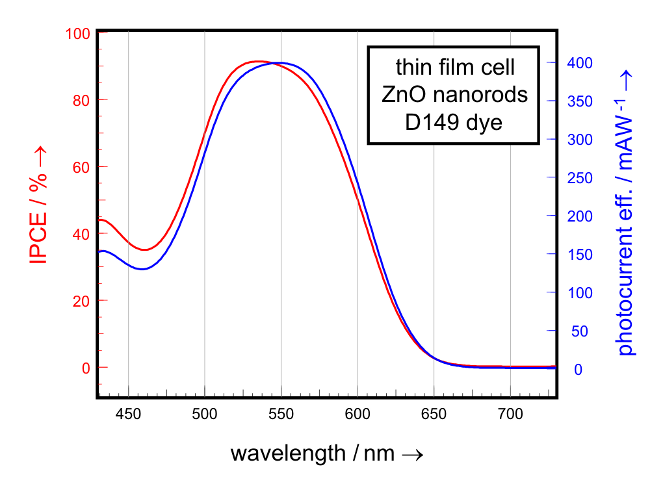

CIMPS-pcs application

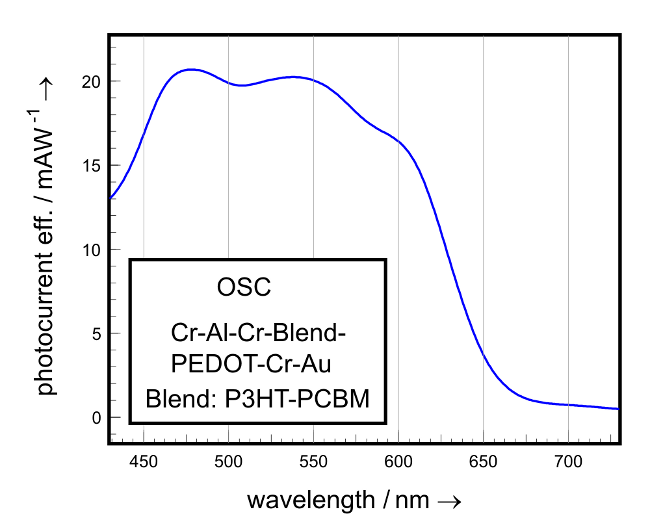

pcs_ipce_2 pcs_ipce_3CIMPS-fit

Photocurrent / photovoltage under light transients

  • transient recorder TR8M

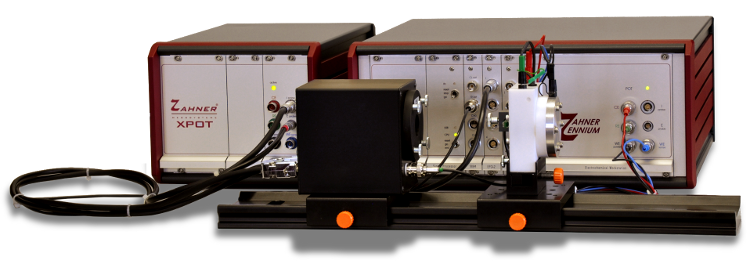

addons2CIMPS-fitt

CIMPS-fit application

[row][column size=”1/2″]

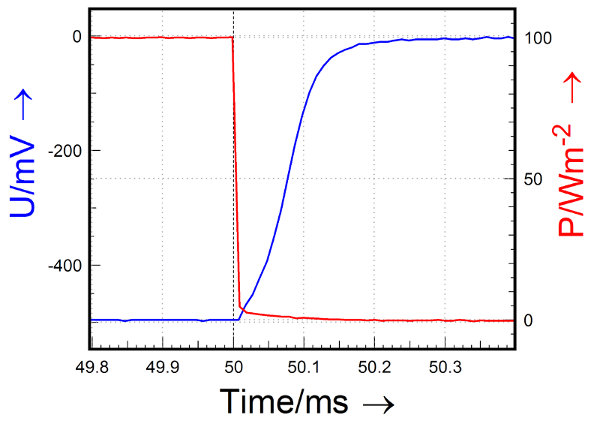

fit_osc-vtPhotovoltage transient
of an organic solar cell
Cr-Al-Cr-P3HT-PCBM-PEDOT-Cr-Au

[/column] [column size=”1/2″]

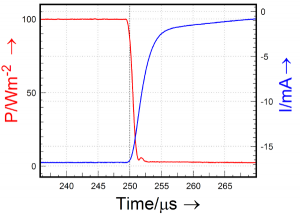

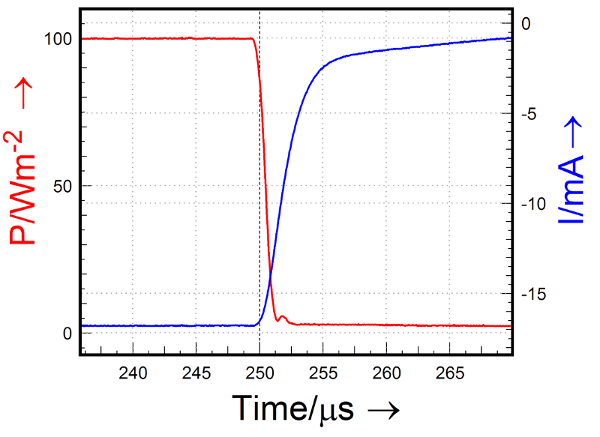

fit_si-ctPhotocurrent transient of a
monolithic silicon solar cell

[/column] [/row]

CIMPS-dtr

OIS, dynamic transmittance / reflectance measurements

  • calibrated photodiode
  • XPot

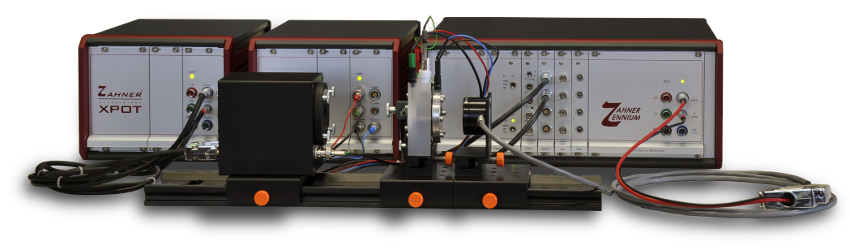

dtrsystem



 More information : Zahner.de

Download document for CIMPS click Here
