ZENNIUM X

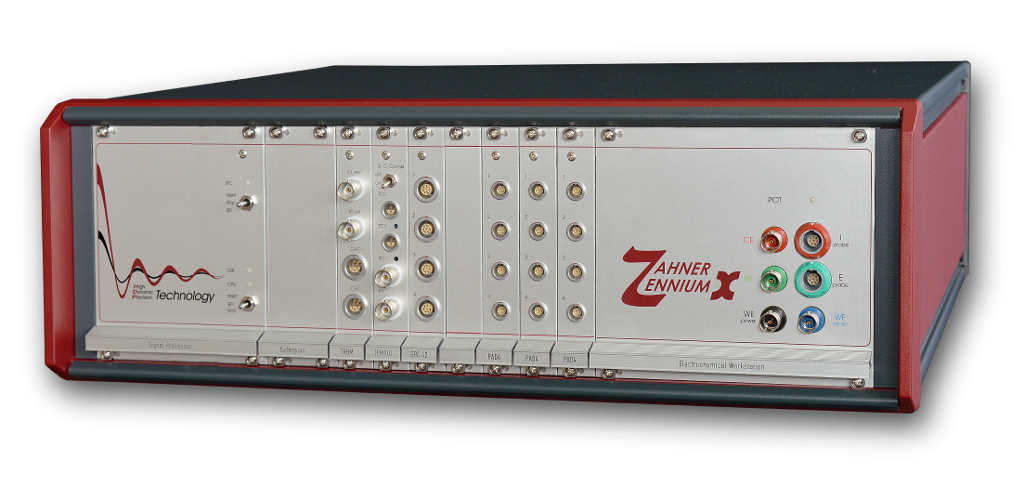

ZENNIUM X electrochemical workstation with potentiostat
The ZENNIUM X is a modular electrochemical workstation including a potentiostat / galvanostat and a frequency response analyzer (FRA) unit with a frequency range up to 12 MHz at ±4 A and at a compliance voltage of up to ±32 V. With an input impedance of more than 10 TΩ || 5 pF the workstation is suitable for a wide range of electrochemical tasks.
The electrochemical measurement capabilites of theZENNIUM X workstation can be extented by adding up to ten additional plug-in cards such as EPC42, TEMP/U or PAD4. For example, the EPC42 allows the ZENNIUM X to control up to four additional external devices such as power potentiostats of the PP/XPot-series (boosters) or electrical loads of the EL-series. Thus, our ZENNIUM X electrochemical workstation is able to provide even more advanced measurement methods and allows us to satisfy any of your electrochemical research requirements.
Specifications
| General | |
| Overall bandwidth | DC – 15 MHz |
| ADC resolution | 32 bit |
| Harmonic reject* | > 60 dB @ ½ full scale |
| Potentiostat modes | potentiostatic, galvanostatic, pseudo-galvanostatic, rest potential, off |
| Cell connection | 2-, 3-, 4-terminal kelvin |
| Ground reference | grounded, floating |
| Extension slots | 10 |
| PC interface | USB 2.0 |
| Dimensions | 470 x 160 x 376 mm |
| Weight | 13.2 kg |
| Accessories | cell cable set, USB cable, power cord, manual, Testbox, THALES XT Software Suite |
| Power supply | 100/115/230VAC, 50/60Hz |
| Ambient temperature | +10 °C to +30 °C |
| Ambient humidity | < 60% without derating |
| Frequency generator & analyzer | |
| Frequency range | 10 µHz to 12 MHz |
| Accuracy* | < 0.0025% |
| Resolution | 0.0025%, 10000 steps/decade |
| Output potentiostatic | ||
| Controlled voltage | ±5 V ±15 V | |
| Resolution | 2.5 nV 7.5 nV | 5 V range 15 V range |
| Accuracy* | ±50 µV ± 5 ppm of reading ±200 µV ± 5 ppm of reading | 5 V range 15 V range |
| Integral Nonlinearity* | typ. 1 ppm, max. 2 ppm typ. 3 ppm, max. 8 ppm | 5 V range 15 V range |
| Compliance voltage | ±16 V ±32 V | Low compliance voltage mode High compliance voltage mode |
| AC amplitude | 0 to 2 V, 18 bit resolution 0 to 6 V, 18 bit resolution | 5 V range 15 V range |
| Bandwidth | 15 MHz @ 33 Ω load | |
| IR compensation | auto AC impedance technique range 0 to 10 MΩ resolution 0.012% | |
| Small signal rise time | 150 ns to 200 µs in 5 steps | automatic selection |
| Slew rate* | 15 MV/s | |
| Phase shift* | 10° @ 500 kHz |
| Output galvanostatic | ||
| Controlled current | ±4 A | |
| Current range | ±1 nA to ±4 A in 12 steps | Main |
| Resolution | 32 bit, ±0.2 ppb of FS | |
| Accuracy* | 0.01 % of FS ± 0.025 % of reading 0.05 % of FS ± 0.1 % of reading | ≥ 1 µA to 100 mA < 1 µA or > 100 mA |
| Input | ||
| Maximum input voltage | ±5.5 V ±16 V | 5 V range 15 V range |
| Voltage resolution | 2.5 nV 7.5 nV | 5 V range 15 V range |
| Voltage accuracy* | ±20 µV ± 2 ppm of reading ±50 µV ± 5 ppm of reading | 5 V range 15 V range |
| Current resolution | ±5 aA (32 Bit) | Main / HiZ Probe |
| Current accuracy* | ± 0.01% of FS ± 0.1% of FS ± 0.1% of FS ± 0.5% of reading, ± 125 fA | 1 µA … 100 mA 100 mA … 4 A 10 nA … 1 µA < |1 nA| HiZ Probe |
| Input impedance* | > 10 TΩ || ±5 pF (typical) > 1000 TΩ || ±1 pF (typical) | Main HiZ Probe |
| Input leakage current* | < |± 200 fA| typ. < |± 2 pA| max. |± 10 fA| typ. | HiZ Probe |
| Impedance range* | 1 mΩ to 10 GΩ / 1% 100 mΩ to 10 MΩ / 0.1% 100 mΩ to 100 GΩ / 2% 10 µΩ to 1 GΩ / 2% 1 mΩ to 10 MΩ / 0.2% | Main HiZ Gal |
| Common mode rejection* | > 86 dB @ 10 µHz to 100 kHz > 66 dB @ 100 kHz to 12 MHz | |
| Input channel phase-tracking accuracy* | ±0.05 ° @ 10 µHz to 100 kHz ±0.125 ° @ 100 kHz to 12 MHz | |
| Equivalent effective input noise* | 1 µV rms / 100 fA rms @ 1 mHz to 10 Hz 10 µV rms / 15 fA rms @ 1 mHz to 10 Hz | Main HiZ |
*Preliminary
