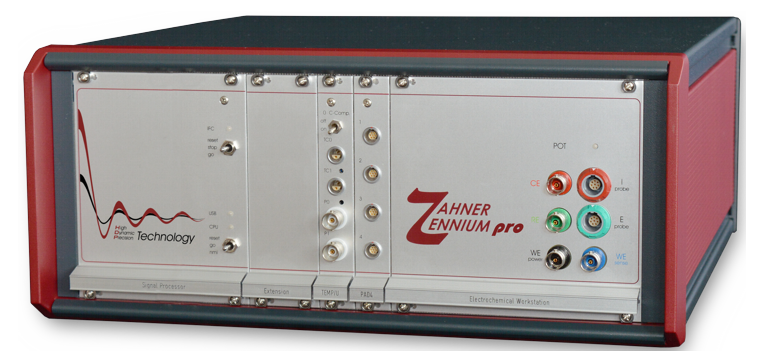

ZAHNER ZENNIUM pro Electrochemical Workstation

The all-purpose instrument

The ZENNIUM pro is a modular electrochemical workstation including a potentiostat / galvanostat and a frequency response analyzer (FRA) unit with a frequency range up to 8 MHz at ±3 A and at a compliance voltage of up to ±28 V. With an input impedance of more than 10 TΩ || 5 pF the workstation is suitable for a wide range of electrochemical tasks.

The electrochemical measurement capabilites of the ZENNIUM pro workstation can be extented by adding up to five additional plug-in cards such as TEMP/U or EPC42. For example, the latter makes it possible to control up to four additional external devices such as power potentiostats of the PP/XPot-series (boosters) or electrical loads of the EL-series. Thus, our ZENNIUM pro electrochemical workstation is able to provide even more advanced measurement methods and allows us to satisfy any of your electrochemical research requirements.

Specifications

General
Overall bandwidth	DC – 10 MHz
ADC resolution	32 bit
Harmonic reject*	> 60 dB @ ½ full scale
Potentiostat modes	potentiostatic, galvanostatic, pseudo-galvanostatic, rest potential, off
Cell connection	2-, 3-, 4-terminal kelvin
Ground reference	grounded, floating
Extension slots	5
PC interface	USB 2.0
Dimensions	364 x 160 x 376 mm
Weight	11.4 kg
Accessories	2 cell cable sets, USB cable, power cord, manual
Power supply	100/115/230VAC, 50/60Hz
Ambient temperature	+10 °C to +30 °C
Ambient humidity	< 60% without derating

Frequency generator & analyzer
Frequency range	10 µHz to 8 MHz
Accuracy*	< 0.0025%
Resolution	0.0025%, 10000 steps/decade

Output potentiostatic
Controlled voltage	±5 V ±15 V
Resolution	2.5 nV 5 V range 7.5 nV 15 V range
Accuracy*	±100 µV ± 10 ppm of reading 5 V range ±500 µV ± 10 ppm of reading 15 V range
Integral Nonlinearity*	typ. 2 ppm, max. 4 ppm 5 V range typ. 6 ppm, max. 12 ppm 15 V range
Compliance voltage	±14 V Low compliance voltage mode ±28 V High compliance voltage mode
AC amplitude	0 to 2 V, 18 bit resolution 5 V range 0 to 6 V, 18 bit resolution 15 V range
Bandwidth	10 MHz @ 33 Ω load
IR compensation	auto AC impedance technique range 0 to 10 MΩ resolution 0.012%
Small signal rise time	150 ns to 200 µs in 5 steps automatic selection
Slew rate*	15 MV/s
Phase shift*	10° @ 500 kHz

Output galvanostatic
Controlled current	±3 A
Current range	±1 nA to ±3 A in 12 steps                  Main
Resolution	32 bit, ±0.2 ppb of FS
Accuracy*	0.02 % of FS ± 0.05 % of reading   ≥ 1 µA to 100 mA 0.1 % of FS ±     0.2 % of reading   < 1 µA or > 100 mA

Input
Maximum input voltage	±5.5 V 5 V range ±16 V 15 V range
Voltage resolution	2.5 nV 5 V range 7.5 nV 15 V range
Voltage accuracy*	±50 µV ± 5 ppm of reading 5 V range ±100 µV ± 10 ppm of reading 15 V range
Current resolution	±5 aA (32 Bit) Main / HiZ Probe
Current accuracy*	± 0.02% of FS 1 µA … 100 mA ± 0.2% of FS 100 mA … 3 A ± 0.2% of FS 1 nA … 1 µA ± 0.5% of reading, ± 125 fA < |1 nA| (HiZ Probe)
Input impedance*	> 10 TΩ || ±5 pF (typical) Main > 1000 TΩ || ±1 pF (typical) HiZ Probe
Input leakage current*	< |± 200 fA| typ. < |± 2 pA| max.    |± 10 fA| typ. HiZ Probe
Impedance range*	1 mΩ to   10 GΩ /    2% Main 100 mΩ to   10 MΩ / 0.2% 100 mΩ to 100 GΩ /    2% HiZ    10 µΩ to     1 GΩ /    2% Gal    1 mΩ to    10 MΩ / 0.2%
Common mode rejection*	> 86 dB @   10 µHz to 100 kHz > 66 dB @ 100 kHz to     8 MHz
Input channel phase-tracking accuracy*	±0.05 ° @   10 µHz to 100 kHz ±0.125 ° @ 100 kHz to    8 MHz
Equivalent effective input noise*	1 µV rms / 100 fA rms @ 1 mHz to 10 Hz Main 10 µV rms / 15 fA rms @ 1 mHz to 10 Hz HiZ Probe

*Preliminary
