SCREW JOINTS FOR PRESSURES UP TO 5 BAR

BOLA TUBE FITTINGS, PTFE







Material:                                      PTFE

Chemical resistance:                   +++ universal

Vacuum:                                      suitable

Temperature resistance:              from -200°C to +250°C

Pressure:                                     5 bar

PRODUCT DESCRIPTION

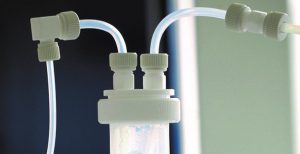

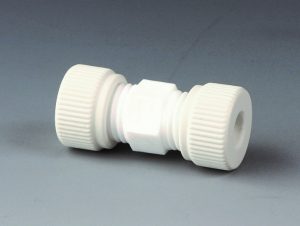

Straight tube fitting made of PTFE with nuts made of glass-fibre reinforced PTFE. Universal chemical resistance, the product is only exposed to PTFE.



BOLA GROUND JOINT TUBE FITTINGS, PTFE







Material:                                      PTFE

Chemical resistance:                    +++ universal

Vacuum:                                      suitable

Temperature resistance:              from -200°C to +250°C

PRODUCT DESCRIPTIONAPPLICATIONS

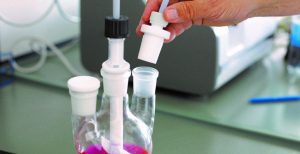

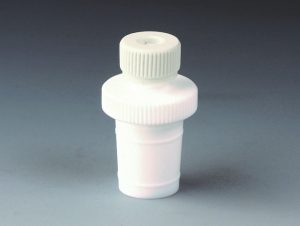

Fitting made of PTFE for transition from ground joints to metric threads for connecting hard-walled tubing (e.g. PTFE, PFA or FEP). With nuts made of glass-fibre reinforced PTFE, body with rings and knurled grip for opening. The product is only exposed to PTFE.

For connecting tubes or tubing to vessels with ground joint. For inserting and fixing probes, thermometers, dip tubes or cables.



BOLA 2WAY STOPCOCKS, PTFE





Material:                                      PTFE

Chemical resistance:                   +++ universal

Temperature resistance:              from 0°C to  +110°C

Pressure:                                     2 bar

PRODUCT DESCRIPTIONAPPLICATIONS

2-way stopcock with straight bore and two connections or 3-way stopcock with T-shaped bore and three connections, with nuts made of glass-fibre reinforced PTFE for connecting tubing or tube. Conical stopcock plug, tightness is increased by turning the nut on the lower side. 3-way stopcock plug with T-shaped mark of flow direction. Universal chemical resistance, the flowing product is only exposed to PTFE.

For distributing liquids or gases. Quick and easy disconnection of flow.
