GROUND JOINT COMPONENTS

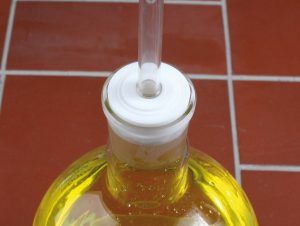

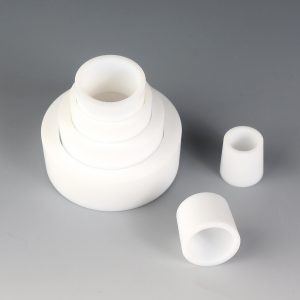

BOLA GROUND JOINT REDUCING SET, PTFE







Material:                                      PTFE

Chemical resistance:                   +++ universal

Vacuum:                                      suitable

Temperature resistance:              from -200°C to +250°C

PRODUCT DESCRIPTIONAPPLICATIONS

Made of PTFE, consisting of reducing rings graduated as follows: NS 14 – NS 19 – NS 24 – NS 29 – NS 34 – NS 45 and NS 60.

For bridging different cone and socket sizes e.g. a NS 14 cone can funtionally be placed into a NS 45 socket.

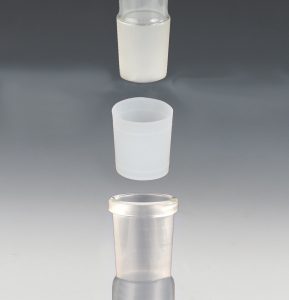

BOLA SLEEVES WITH RIBS, PTFE





Material:                                       PTFE

Chemical resistance:                    +++ universal

Vacuum:                                      suitable

Temperature resistance:              from -200°C to +250°C

Feature:                                      reusable

PRODUCT DESCRIPTIONAPPLICATIONS

Made of PTFE, with sealing rings (“ribs”) on the outside. Without gripping ring and therefore usable with joint clamps. For vacuum up to 0,1 mbar; solid construction for continued use; sealing rings are easily accessible and therefore easy to clean.

For example for rotary evaporators.

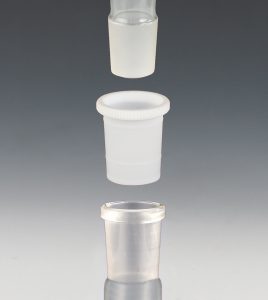

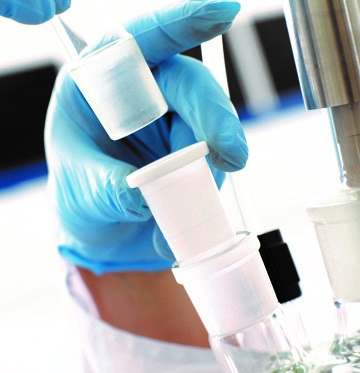

BOLA SLEEVES WITH GRIPPING RING, PTFE







Material:                                     PTFE

Chemical resistance:                  +++ universal

Vacuum:                                     suitable

Temperature resistance:              from -200°C to +250°C

Feature:                                       reusable

PRODUCT DESCRIPTION

Made of PTFE, with gripping ring and sealing rings on the outside, high-vacuum tight sealing; low leak rate: < 0,0001 mbar x l/s;solid construction for continued use; sealing rings are easy accessible and therefore easy to clean.

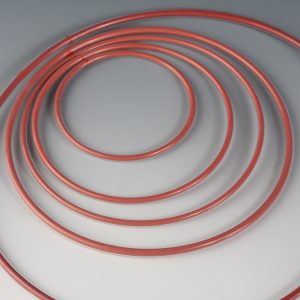

BOLA O-RINGS FOR LABORATORY FLAT FLANGES, FEP





Chemical resistance:                   ++ very good

Material:                                     FEP

Temperature resistance:              from -60°C to +205°C

PRODUCT DESCRIPTIONAPPLICATIONS

Silicone core with seamless FEP coating; manufactured according to DIN 12214;1996-12; flexible, almost universal chemical resistance.

As sealing for flat flange with groove.
