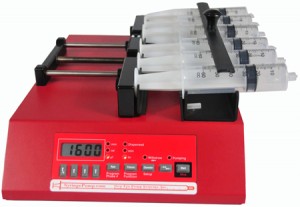

NE-1600 Six Channel Programmable Syringe Pump

Syringe Pump

NE-1600 white small HD

Description:
  •     Holds 2, 4, or 6 syringes of up to 140 cc each
  •     (Glass or stainless steel syringes larger than 20mL may require Anti-siphon Modification Kit.).
  •     Infusion rates from 0.452µL/hr (1 cc syringe) to 1451 ml/hr (60 cc syringe)
  •     Easy-to-use keypad interface
  •     Higher flow rate models available
  •     Includes all the advanced functions and programming features of the NE-1000 family
  •     Disposable, Glass, Stainless Steel Syringes and Plumbing Supplies are sold separately.

Features of the NE-1000 Family of Syringe Pumps:

  •     Fully programmable; automation capable
  •     Operates stand-alone or from a computer
  •     Infusion and withdrawal
  •     Set a single pumping rate and/or dispensing volume
  •     Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, sound the buzzer
  •     Network, control, and monitor up to 100 pumps with one computer
  •     Worldwide power supplies available
  •     Motor stall detection
  •     Dispensing accuracy of +/-1%
  •     Unlimited lifetime technical support
  •     Two year warranty

Example Flow Rates (NE-1600):

Syringe Size Maximum Rate Minimum Rate
0.5 µL 17.45 µL/hr 0.001 µL/hr
1 mL 36.19 mL/hr 0.452 µL/hr
3 mL 153.2 mL/hr 1.914 µL/hr
5 mL 255 mL/hr 3.185 µL/hr
10 mL 415.9 mL/hr 5.195 µL/hr
20 mL 661.4 mL/hr 8.26 µL/hr
30 mL 862.8 mL/hr 10.78 µL/hr
60 mL 1451 mL/hr 18.1 µL/hr
140 mL 2376 mL/hr 29.7 µL/hr
