FILTRATION

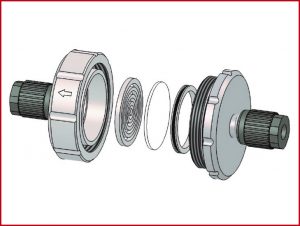

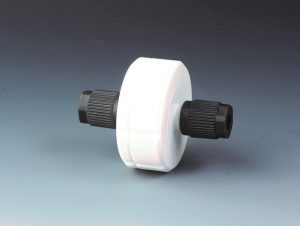

BOLA FLOW FILTERS, PTFE, PPS







Chemical resistance:       +++ universal

Vacuum:              suitable

autoclave:           121°

Material:              PTFE, PPS

Temperature resistance:              from -20°C to +160°C

PRODUCT DESCRIPTIONAPPLICATIONS

Suitable for overpressure or vacuum, usable for example as added filter or as large-area in-line apparatus in a line system. Suitable for temperatures up to +160°C. The optionally available filtering membranes can be exchanged easily. Tubing can be connected to GL threads by means of the included laboratory screw joints. The filters are produced without plasticisers and have an almost universal chemical resistance. They do not release any trace elements into the filtrate. Due to the non-adhesive surface, they are easy to clean and can be reused.

Flow rate:

Flow capacity under vacuum of 100 kPa (1000 mbar) using a PTFE filtering membrane with a thickness of 0,2 mm:

For membrane-Ø 25 mm with pore size 1,00 µm: Flow of water 96 ml/min

For membrane-Ø 25 mm with pore size 1,00 µm: Flow of air 12800 ml/min

For membrane-Ø 25 mm with pore size 0,45 µm: Flow of water 11 ml/min

For membrane-Ø 25 mm with pore size 0,45 µm: Flow of air 4600 ml/min

For membrane-Ø 47 mm mit Porengröße 1,00 µm: Flow of water 212 ml/min

For membrane-Ø 47 mm mit Porengröße 1,00 µm: Flow of air 48000 ml/min

For membrane-Ø 47 mm mit Porengröße 0,45 µm: Flow of water 50 ml/min

For membrane-Ø 47 mm mit Porengröße 0,45 µm: Flow of air 28000 ml/min

For membrane-Ø 90 mm with pore size 1,00 µm: Flow of water 648 ml/min

For membrane-Ø 90 mm with pore size 1,00 µm: Flow of air 56400 ml/min

For membrane-Ø 90 mm with pore size 0,45 µm: Flow of water 264 ml/min

For membrane-Ø 90 mm with pore size 0,45 µm: Flow of air 36000 ml/min

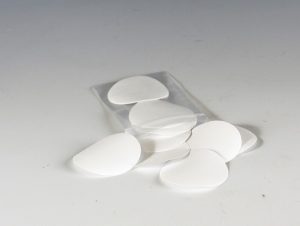

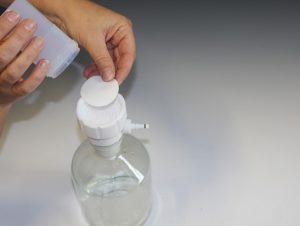

BOLA FILTERING MEMBRANES, PTFE







Material:              PTFE

Chemical resistance:       +++ universal

Temperature resistance:              from -200°C to +250°C

PRODUCT DESCRIPTIONAPPLICATIONS

Made of microporous PTFE, thickness 0,2 mm, packing unit: 10 pieces (see Cat. No. N 1699-…for further sizes)

Flow rate:

Flow capacity under vacuum of 100 kPa (1000 mbar) using a PTFE filtering membrane with a diameter of 47 mm and a thickness of 0,2 mm

Pore size 0,20 µm: Flow of water 35 ml/min

Pore size 0,20 µm: Flow of air 740 ml/min

Pore size 0,45 µm: Flow of water 164 ml/min

Pore size 0,45 µm: Flow of air 2.300 ml/min

Pore size 1,00 µm: Flow of water 510 ml/min

Pore size 1,00 µm: Flow of air 5.330 ml/min

Pore size 5,00 µm: Flow of water 860 ml/min

Pore size 5,00 µm: Flow of air 92.300 ml/min

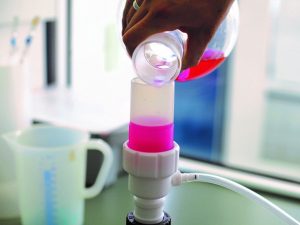

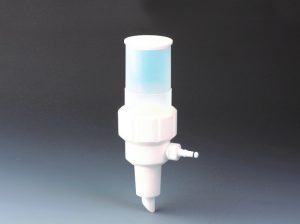

BOLA VACUUM FILTER FUNNELS, PTFE







Material:              PFA, PTFE

Chemical resistance:       +++ universal

Temperature resistance:              from -200°C to +250°C

autoclave:           121°

Transparency:   transparent

PRODUCT DESCRIPTIONAPPLICATIONS

Filtration unit made of PTFE with cone size 29 for connection to a vessel (must be suitable for vacuum) with socket size 29. Multi-stage hose connector with integrated lock screw for vacuum tubing with I.D. 6 and 8 mm, filtration surface 13,8 cm2 , easily exchangeable filtering membrane dia. 47 mm. Filling vessel made of PFA with PTFE lid for protection against contaminations.

Flow rate:

Flow capacity for water under vacuum of 100 kPa (1000 mbar) using a PTFE filtering membrane with a diameter of 47 mm and a thickness of 0,2 mm

Pore size 1,00 µm: Flow 500 ml/min

Pore size 0,45 µm: Flow 115 ml/min

Pore size 0,20 µm: Flow 32 ml/min
