Hidex Sense Microplate Reader

Your scientific research
is important to us

With the right tools we guarantee you can effectively focus on your work.
The Hidex Sense microplate reader is loaded with several unique innovative features
to provide full flexibility at top performance.
With touchscreen operated software and the compact application ready microplate reader,
we turn your applications into results, simply at your fingertip.

hidex_sense_350_001

For every assay
in the lab

Regardless of technology, the Hidex Sense is ready
to use with minimal setup. The comprehensive assay
library of the software in combination with extensive
instrument measurement capability offers immediate
access to all your applications.
A versatile optical filter storage system with capacity
to hold up to 32 optical filters ensures direct readiness
for all applications in your lab.
Hidex Sense 350

hidex_sense_350_002

hidex_sense_350_003

With effortless operation

The Hidex Sense will help your lab become more effective. The user interface is designed to make the operation
safe and comfortable. Straightforward application focused operation minimizes time spent on instrument training,
and is essential for superior results.
hidex_sense_350_004 hidex_sense_350_005

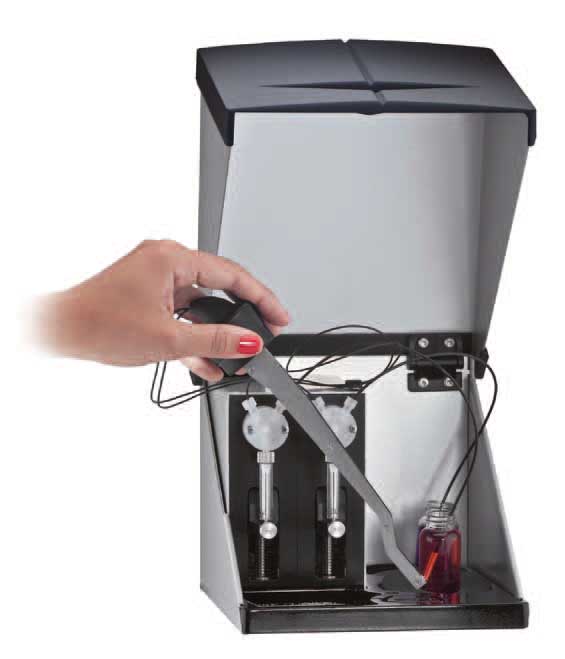

Many assays require immediate measurement, or a series of kinetic measurements, after the addition of reagents.
The Hidex Sense integrated two channel dispenser offers flexible injection procedures and anti-foaming injection
head technology. Injection can be done either by well or by plate, for fast reactions or to maximize throughput.
The innovative design makes the dispensers very comfortable to handle, with direct access to the injector head
for priming and rinsing.
Cellular assays benefit reading from below the sample well. The Hidex Sense features the powerful combination
of dispensing and real time readout, whether you need to measure fluorescence, time resolved fluorescence,
fluorescence polarization or luminescence.
A separate high sensitive, low noise luminescence detector with direct microplate contact gives single cell sensitivity
for the most demanding assays.
All this makes the Hidex Sense suitable for high speed kinetic studies, and enables any kind of assay without limitations.

Performance beyond comparison

Protein quantification, enzyme activity and other photometric assays benefit from the recording the spectrum.
Ultrafast full spectrum readout is obtained in the Hidex Sense by using a high sensitivity spectrograph.
The sample spectrum is scanned in less than a second, with no compromise of sensitivity.

hidex_sense_350_006

 Utilizing filter technology for fluorescence applications gives the best possible
sensitivity and reading speed. The filter storage provides full flexibility with
capacity for 32 filters. Uniquely the same filters can be used for both excitation
and emission with unlimited flexibility.
The Hidex Sense is designed with special attention to compact dimensions and
low energy consumption, offering unseen flexibility to place and handle the
reader in robotic integration, environment control cabinets or where space is
otherwise limited.
Hidex Sense 350

hidex_sense_350_007

From samples to results, simply at your fingertip

Easy to get
started with
Comfortable
to use
Touchscreen
operated
Compact size

Specifications Sense 425-301

Detection limits
Fluorometry
Fluorometry
Photometry spectral range
Luminescence (glow)
Time Resolved Fluorescence
Fluorescence Polarization
< 0.15 fmol / 384 well
< 0.5 fmol / 384 well
230 nm – 1000 nm
< 50 amol ATP / 96 well
< 3 amol / 384 well
< 5 mP SD / 96 well plate
Other features
Plate types
Shaking
Temperature Control
Bottom read
1 – 1536 well
Linear, Orbital Double orbital, with adjustable intensity
Ambient + 2°C to 65°C
read Fluorescence, luminescence, TRF, FP
Optional features
Integrated dispensers
Direct luminescence
1 or 2 channel, real-time detection
< 6 amol ATP / 96 well
Dimensions
Width/Height/Depth
Weight
20cm/ 28cm/ 49cm (8”/ 11”/ 19”)
13kg (29 lbs)
Data and specifications are subject to change. Hidex reserves the rights to alter specifications
