Optical systems

Dolomite offers reliable microscopy solutions for capturing high quality pictures and videos. They are easy to use with wide zoom range and long working distance ideal for observation of your lab experiments.

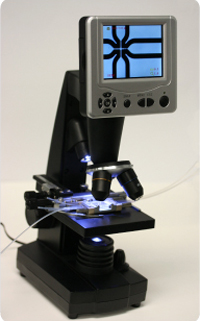

Digital Microscope3200293 The Digital Microscope is a compact solution for capturing high quality still and video images. The innovative design replaces the traditional eyepiece with an LCD screen for easy and confortable viewing of microfluidic experiments.Easy to use, this microscope provides high powers from 40x up to 400x (up to 1600x with digital zoom). It is also ideally suited for tailored adjust the illumination to maximize the image quality of the microfluidic chips.The microscope is supplied with 4x, 10x and 40x objective lens, LCD Monitor, top and bottom illuminators, USB cable and SD Card Slot, AC Adapter, Dust Cover and Carrying Case as well as Digital Camera and Filter Wheel- built in.

Features and benefits:
  •     LCD display with 4x Digital Zoom for easy and confortable viewing of your microfluidic experiments without any need of PC connections
  •     High quality image with a built-in digital camera (2MP)
  •     Top and bottom LED illumination
  •     Easily connected to a PC using USB cable
  •     Easy portable and compact designed
High Speed Camera and Microscope System3200050 The High Speed Camera and Microscope System is a high quality and flexible solution for general microscopy and high speed image capture in microfluidic applications. It features an easy-to-use microscope with wide zoom range and long working distance.The microscope stage is designed to accommodate all types of microfluidic chips and enables users to quickly locate and observe the area of interest. The high speed camera integrates with the microscope and provides image capture at speeds of over 1000fps via FireWire link to a desktop PC. Illumination is provided by a 150W illuminator with alternative fibre optic light guides for different lighting options.

Features and benefits:
  •     Wide zoom range
  •     Long working distance
  •     Still image and high speed video capture
  •     View through microscope or live images on PC
  •     Ideal for observation of microfluidic experiments
  •     High power illumination from above or below
    Easy to use
Microscope Stage Adaptor Kit for Edge Interfaces3200310 The Microscope Stage Adaptor Kit Edge for Interfaces allows Dolomite’s Multiflux Edge Interfaces and connectors to be secured in the X-Y direction on microscope stages for easy viewing of microfluidic experiments. The kit is compatible with Dolomite’s Digital Microscope (Part No. 3200293) and a wide range of microscope slide holders which work with a slide size of 75mm x 25mm. Made of stainless steel, the adaptors have excellent chemical resistance.

Kit contains:
  •     1 x adaptor for Multiflux’1 and Multiflux’2 H Interface (Part No. 3000155, 3200297)
  •     1 x adaptor for Multiflux’1 T’Junction Chips with Header
  •     1 x adaptor for future Multiflux’2 Edge Interfaces
Microscope Stage Adaptor for Top Interfaces3200314 The Microscope Stage Adaptor for Top Interfaces allows Dolomite’s Multiflux Top Interfaces and connectors to be secured in the X-Y direction on microscope stages for easy viewing of microfluidic experiments. The adaptor is compatible with Dolomite’s Digital Microscope (Part No. 3200293) and a wide range of microscope slide holders which work with a slide size of 75mm x 25mm. Made of black Delrin, the adaptors have excellent chemical resistance.

Adaptor can be used with:
  •     Multiflux-Top Interface 4-way (4mm) (Part No. 3000109)
  •     Multiflux-Top Interface 4-way (2.15mm) (Part No. 3000237)
  •     Multiflux 2-Top Interface 7-way (4mm) (Part No. 3200294)
  •     Multiflux 2-Top Interface 7-way (2.15mm) (Part No. 3200295)
  •     Multiflux 2-Double Top Interface 7-way (4mm) (Part No. 3200296)
